Solar air conditioner — energy-saving and eco-friendly, reduces electricity costs, and eligible for government subsidies.

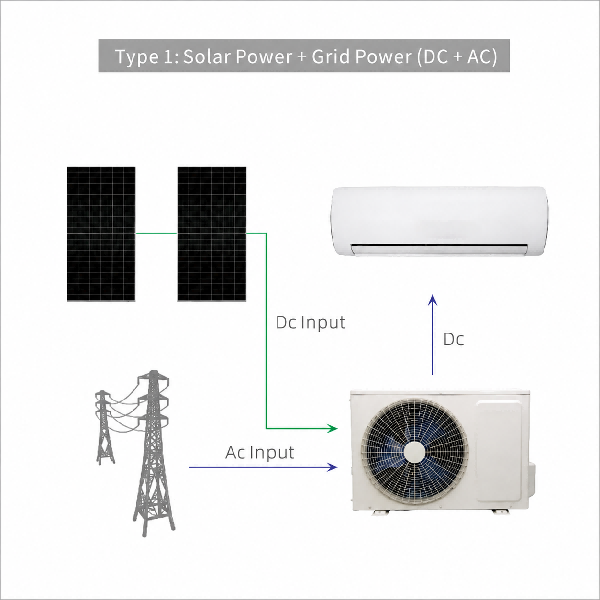

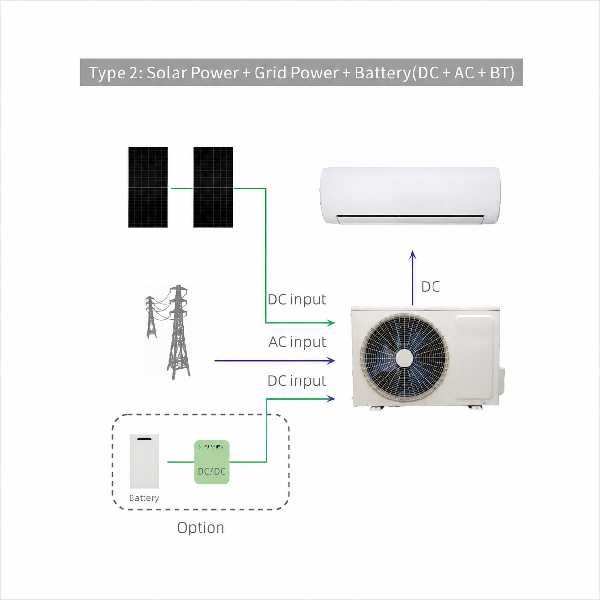

MGM hybrld solar alr condltloner features both the on-grld and off-grid modes,cooling and heating type.It can be powered by solarpower only,or solar power&AC power together.This solar air conditioner can be used with 100%solar power,and help cut 40-80%ofdaytime electricity cost(by on-grid).compared with normal mini split,the built-in system of our product is very high efficient (producesanequivalent SEER uptoSEER35)even if you are using it with the ACpower only.Normallyspeaking,using the ACunitisthe biggest powerconsumption for any scenarios,which account for 60%of the electricitybill.GLONEV solar mini split adopts the technology of solardlrect-drive (runs directly with the solar power)generated from the solar panels,no battery or inverter required.Therefore,it can save yourelectricitybill during daytime.
| HIGHLIGHTS | |
| O1 Directly powered by solar panels | 02 Application |
| Using 100%of solar power during daytime. Helps save up to 97% of electricity cost. |
Working temperatures:-10Dto+52℃.Designed to meet the T3 environment.Wide working voltages :AC160V-250V.Designed to meet the situation with remote network orunstable voltage. |
| 03 Easy installing to the solar panels | 04 Features superenergy-saving and extra cooling effect |

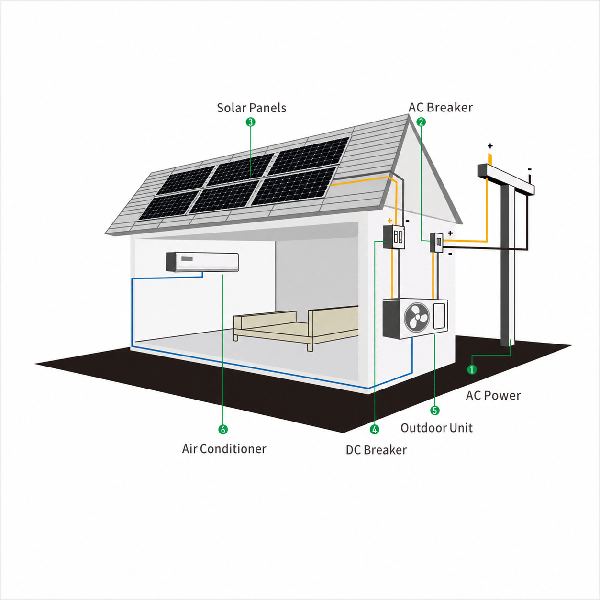

| The installation between solar panels and solar air conditioner is easy.Identify the polarity of the solar cables,then connect them to the input port of the outdoorunit. |
The compressor with large capacity and the heat exchanging system provide excellent cooling performance.When using it with the solarenergy, it can offer SEER up to SEER 35,and SEER 25 without solar power. |
| SPECIFICATIONS | |||||||
| Power supply source | GL-ADC09GW-XA-R32 | GL-ADC12GW-XA-R32 | GL-ADC18GW-XA-R32 | GL-ADC09GW-24-R32 | |||
| Power supply source | V/PH/Hz | 220-240V50Hz/60Hz | 220-240V50Hz/60Hz | 220-240V50Hz/60Hz | 220-240V50Hz/60Hz | ||
| DC | DC90-380V MAX.15A | DC90-380V MAX.15A | DC90-380V MAX.15A | DC90-380V MAX.20A | |||
| Rated Capacity | Cooling | W | 2500 | 3500 | 5000 | 7000 | |
| Heating | W | 2600 | 3600 | 5100 | 7200 | ||
| Rated Power onsumption |
Cooling | W | 735 | 1030 | 1520 | 2100 | |
| Heating | W | 670 | 980 | 1550 | 2180 | ||
| Rated Running Current |
Cooling | A | 3.2 | 4.7 | 6.9 | 9.2 | |
| Heating | A | 2.9 | 4.5 | 7 | 9.5 | ||
| Max.Input Power | W | 1450 | 1870 | 2860 | 3800 | ||
| Max.Input Current | A | 6.6 | 8.5 | 13 | 17..2 | ||
| SEER Cooling | W/W | SEER6.6 | SEER6.6 | SEER6.6 | SEER6.6 | ||
| SCOP Heating | W/W | SCOP4.6 | SCOP4.6 | SCOP4.0 | SCOP4.0 | ||
| Refrigerant | - | R32 | R32 | R32 | R32 | ||
| Refrigerant Charged | G | 900 | 900 | 920 | 1260 | ||
| Air Flow Volume | m₃/h | 650 | 650 | 900 | 1200 | ||
| Noise level(INDOOR) | dB(A) | 41 | 42 | 45 | 48 | ||
| Noise level(OUTDOOR) | dB(A) | 50 | 50 | 52 | 56 | ||
| Connect pipe |
Liquid tube Diameterx Thickness |
mm | 中6*0.5 | φ6*0.5 | φ6*0.5 | φ6*0.5 | |
| Gas tube | mm | φ9.52*0.6 | φ9.52*0.6 | Φ12.7*0.7 | Φ15.88*0.9 | ||
| Compressor parameter |
Compressor Model | KSN108D34UFZ | KSN108D34UFZ | FTz-SM151AXBA | FTz-SM151AXBA | ||
| Drive mode | AC/DC | DC | DC | DC | DC | ||
| type | Rolling Rotor Type | Rolling Rotor Type | Rolling Rotor Type | Rolling Rotor Type | |||
| Brand | GMCC | GMCC | LANDA | GMCC | |||
| Capacity | W | 3405±5% | 3405±5% | 5780±5% | 7740±5% | ||
| Input | W | 860±5% | 860±5% | 1320±5% | 2065±5% | ||
| Rated Current(RLA) | A | 5.8±5% | 5.8±5% | 6.0±5% | 9.4±5% | ||
| Dimension | Outdoor | Net Dimension(WxDxH) | mm | 795×290×555 | 795×290×555 | 795×290×555 | 860x304x733 |
| Packing | mm | 910*400*630 | 910*400*630 | 910*400*630 | 1005*450*820 | ||
| Indoor | Net Dimension(W×DxH) | mm | 895*203*300 | 895*203*300 | 1000*240*310 | 1130*245*320 | |
| Packing Dimension(W×DxH) | mm | 965*375*370 | 965*375*370 | 1075*310*385 | 1195*310*390 | ||
| Indoorunit weight(Gross/Net) | Kg | 11/9 | 11/9 | 14.5/12.5 | 17.5/15.5 | ||
| Outdoorunit weight(Gross/Net) | Kg | 38.5/34.5 | 38.5/34.5 | 39/35 | 55/51 | ||
| Loading qty(20/40Q/40HQ) | 90/176/194 | 90/176/194 | 79/160/180 | 50/105/120 | |||
