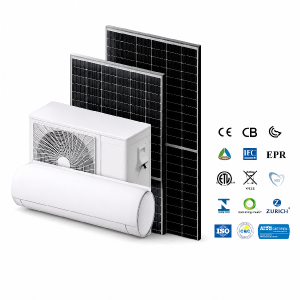

Off-Grid Solar Photovoltaic Air Conditioner

Short Description:

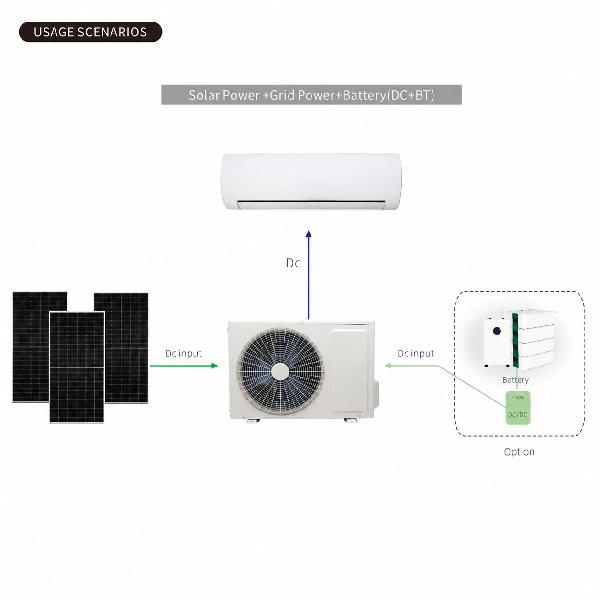

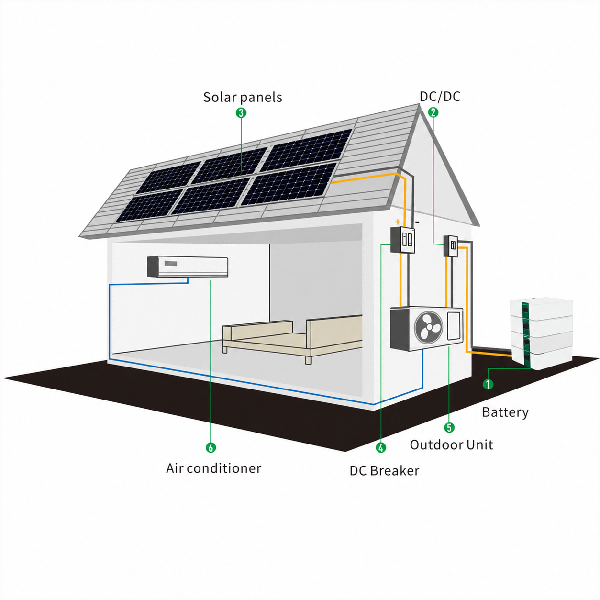

hybrid solar air conditioner features both the on-grid and off-grid modes, cooling and heating type. It can be powered by solar power only, 100% off-grid with battery for backup, or solar power & AC power together. This solar air conditioner can be used with solar power during daytime and battery at the night time, and help cut 100% of electricity cost (by off-grid). Compared with normal mini split, the built-in system of our product is very high efficient (produces an equivalent SEER up to SEER35) even if you are using it with the AC power only. Normally speaking, using the AC unit is the biggest power consumption for any scenarios, which account for 60% of the electricity bill. GLONEV solar mini split adopts the technology of solar direct-drive (runs directly with the solar power) generated from the solar panels, with the use of the battery together, you do not need to pay the electricity bills any more!

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

SOLAR AIR CONDITONER
Power supply source				GL-ADC09GW-XA-R32	GL-ADC12GW-XA-R32	GL-ADC18GW-XA-R32	GL-ADC09GW-24-R32
Powersupply source		V/PH/Hz		220-240V50Hz/60Hz	220-240V50Hz/60Hz	220-240V50Hz/60Hz	220-240V50Hz/60Hz
Powersupply source		DC		DC90-380V MAX.15A	DC90-380V MAX.15A	DC90-380V MAX.15A	DC90-380V MAX.20A
Rated Capacity		Cooling	W	2500	3500	5000	7000
Rated Capacity		Heating	W	2600	3600	5100	7200
Rated Power onsumption		Cooling	W	735	1030	1520	2100
Rated Power onsumption		Heating	W	670	980	1550	2180
Rated Running Current		Cooling	A	3.2	4.7	6.9	9.2
Rated Running Current		Heating	A	2.9	4.5	7	9.5
Max.Input Power			W	1450	1870	2860	3800
Max.Input Current			A	6.6	8.5	13	17..2
SEER Cooling			W/W	SEER6.6	SEER6.6	SEER6.6	SEER6.6
SCOPHeating			W/W	SCOP4.6	SCOP4.6	SCOP4.0	SCOP4.0
Refrigerant				R32	R32	R32	R32
Refrigerant Charged			G	900	900	920	1260
Air Flow Volume			m₃/h	650	650	900	1200
Noise level(INDOOR)			dB(A)	41	42	45	48
Noiselevel(OUTDOOR)			dB(A)	50	50	52	56
Connect pipe	Liquid tube Diameterx Thickness		mm	φ6*0.5	中6*0.5	中6*0.5	φ6*0.5
Connect pipe	Gas tube		mm	φ9.52*0.6	φ9.52*0.6	φ12.7*0.7	φ15.88*0.9
Compressor parameter	Compressor Model			KSN108D34UFZ	KSN108D34UFZ	FTz-SM151AXBA	FTz-SM151AXBA
	Drive mode		AC/DC	DC	DC	DC	DC
	type			Rolling Rotor Type	Rolling Rotor Type	Rolling Rotor Type	Rolling Rotor Type
	Brand			GMCC	GMCC	LANDA	GMCC
	Capacity		W	3405±5%	3405±5%	5780±5%	7740±5%
	Input		W	860±5%	860±5%	1320±5%	2065±5%
	Rated Current(RLA)		A	5.8±5%	5.8±5%	6.0±5%	9.4±5%
Dimension	Outdoor	Net Dimension(WxDxH)	mm	795×290×555	795×290×555	795x290x555	860x304x733
	Outdoor	Packing	mm	910400630	910400630	910400630	1005450820
	Indoor	Net Dimension(WxDxH)	mm	895203300	895203300	1000240310	1130245320
	Indoor	Packing Dimension(W×DxH)	mm	965375370	965375370	1075310385	1195310390
Indoorunit weight(Gross/Net)			Kg	11/9	11/9	14.5/12.5	17.5/15.5
Outdoorunit weight(Gross/Net)			Kg	38.5/34.5	38.5/34.5	39/35	55/51
Loading qty(20/40Q/40HQ)				90/176/194	90/176/194	79/160/180	50/105/120

LITHIUM BATTERY
Model		GL48200-10Kw		GL48400-20Kw
Batteries materials		Lithium iron phosphate		Lithium iron phosphate
Series parallel mode(S series,Pparallel)		16S1P		16S4P
Nominal voltage		51.2V		51.2V
Nominalcapacity		200Ah		400Ah(Single 100ah)
Size(mm)		860485155		610545960
Weight		95kg		20kg
Color		Optional		Optional
Parallel support		Parallel terminals are supported		Parallel terminals are supported
Output port mode		terminal		terminal
Charging way		CC/CP/VP		CC/CP/VP
Charging current		0.2C(standard)		0.2C(standard)
Maximum charging current		Max0.5C@25℃		Max0.5C@25℃
Charge cut-off voltage		58.4V/CELL		58.4V/CELL
Discharge way		CC/CP/VP		CC/CP/VP
Discharge current		0.5C		0.5C
Maximum discharge current		Max1C@25℃		Max0.6C@25℃
Discharge cut-off voltage		44.8V		44.8V
According to		LCD
Communication interface		RS485/RS232/CAN		RS485/RS232/CAN
Charging operating temperature		charging:0~+50℃		charging:0~+50℃
Discharge operating temperature		discharge;-20~+55℃		discharge:-20~+55℃
The quality assurance period		36 months		60 months

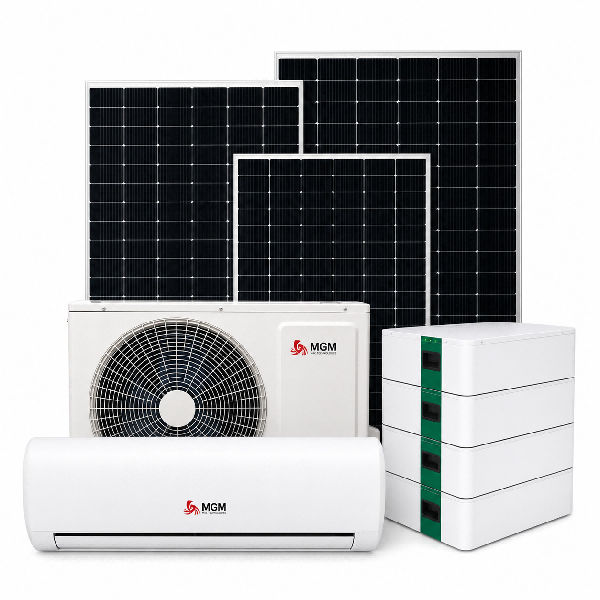

Solar Air Conditioner+Lithium Battery(8hrs)
Product	Model		Battery Backup		Solar Panel(PCS)
9000 BTU	GL-ACDC09GW-XA		10kW		9
12000 BTU	GL-ACDC12GW-XA		10kW		9
18000 BTU	GL-ACDC18GW-XA		20kW		14
24000 BTU	GL-ACDC24GW-XA		25kW		19

Solar Air Conditioner+Lithium Battery(12 hrs)
Product	Model		Battery Backup		Solar Panel(PCS)
9000 BTU	GL-ACDC09GW-XA		15kW		11
12000 BTU	GL-ACDC12GW-XA		15kW		11
18000 BTU	GL-ACDC18GW-XA		25kW		16
24000 BTU	GL-ACDC24GW-XA		15+15kW		24
