T/PV Photovoltaic Hybrid Solar Hot Water System

Short Description:

The T/PV Photovoltaic Hybrid Solar Hot Water System, an integrated solution combining solar power generation, thermal energy collection, water storage, DC water supply, and energy storage technology.

Unlike traditional solar water heaters, our system utilizes a T/PV hybrid panel that simultaneously generates electricity and collects solar heat, significantly improving overall solar energy utilization efficiency.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Key Features & Advantages:

1. Dual Solar Utilization (PV + Thermal)
The system not only generates electricity but also absorbs solar heat at the same time, maximizing energy output from a single panel.

2. Fully DC System (Safer & More Efficient)
Designed with a DC12V low-voltage system:

Higher safety performance
Lower energy consumption
No inverter loss
Ideal for off-grid environments

3. Built-in Lithium Battery Storage

Stores energy during daytime
Provides hot water supply at night
Stable operation even on cloudy or rainy days

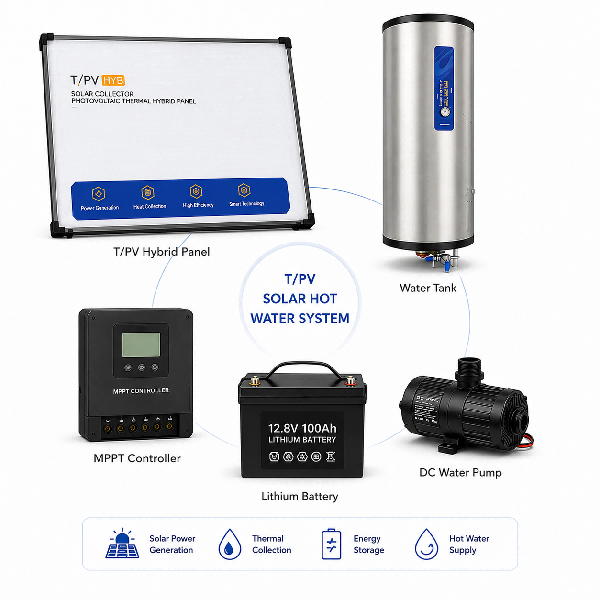

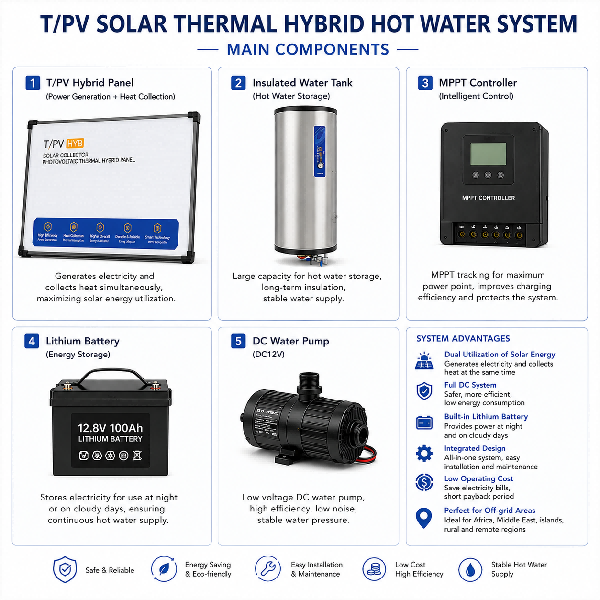

4. Fully Integrated Design
The system combines:

Water tank
T/PV solar panels
MPPT controller
Lithium battery
DC water pump

Easy installation with minimal external components required.

5. Low Operating Cost

Nearly zero electricity cost
Fast return on investment
Highly suitable for high electricity price markets

6. Ideal for Off-Grid & Power-Scarce Regions
Especially suitable for:

Africa & Middle East projects
Rural residential areas
Islands and remote locations
Villas, balconies, RVs, and vacation homes

Even without stable grid power, the system can still provide:

Domestic hot water
Stable water pressure

Reliable daily usage comfort

Module Electrical Performance
Parameter	Value
Open Circuit Voltage (Voc)	41.676 V
Short Circuit Current (Isc)	11.275 A
Module Power @ 48°C (Pmax)	336.3 W
Operating Voltage @ 48°C (Vmp)	34.126 V
Operating Current @ 48°C (Imp)	9.859 A
Module Efficiency (based on cell area)	20.05%
Module Thermal Coefficient (CTP1 level)	0.71
Max. Module Temperature	75°C
Operating Temperature Range	-25°C to +80°C
Max. System Voltage	1500 V
Application Class	Class A
Series Fuse Rating	20 A


Product Specifications
Parameter	Value
Cell Type	Monocrystalline PERC Solar Cell
Cell Model	DMDB9B166
Cell Efficiency	23.30%
Cell Size	166 mm × 60
Module Dimensions	1800 mm × 1080 mm × 48 mm
Weight	38 kg
Backsheet	TPT black
Frame Material	Black Anodized Aluminum Alloy
Junction Box	IP68 rated
Output Cable	4 mm², (+)300 mm / (-)300 mm
Connector	MC4 Compatible


Packaging Information
Parameter	Value
Modules per Pallet	30 + 20 pcs
Modules per Container	150 pcs
