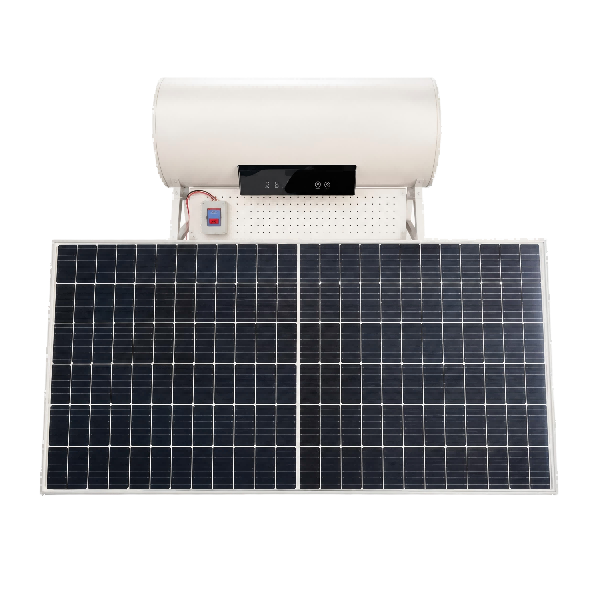

Photovoltaic Electric Water Heater (PV Solar Water Heater)
Key Highlights
AC + DC Dual Heating System
Supports both grid power heating and photovoltaic DC heating for flexible solar water heating applications.
Multiple Capacity Options
Available in 50L, 60L, 80L, and 100L to meet different hot water needs.
Horizontal Installation Design
Space-saving horizontal structure, suitable for wall-mounted or limited-space installation.
LED Digital Display
Displays heating power, heating status, and insulation status clearly.
Blue Diamond Enamel Inner Tank
Resistant to alkali, corrosion, and acid, helping improve tank durability.
2000W AC Heating Power
Standard AC heating element power: 2000W.
550W DC Heating Element
Standard DC heating power: 550W, customizable according to project requirements.
Multiple Protection Design
Includes leakage protection, AC/DC overheat protection, and inner tank over-temperature protection for improved reliability.
| Technical Parameters | Specification |
| Rated Voltage | 220V~ |
| Rated Frequency | 50Hz |
| Rated Power | 2000W |
| Rated Pressure | 0.7MPa (±0.05) |
| Waterproof Grade | IPX4 |
| Temperature Setting | 35~75℃ |
| Energy Efficiency Grade | Grade 2 |
| Capacity | 50L/60L/80L/100L |
| Tank Strength | Grade A |
| Installation Type | Horizontal |
| Control Method | Digital Electronic Control |
| Temperature Display | LED Display |
| Outer Shell Material | SPCC=0.4mm/Spray Coating |
| Inner Tank Material | Blue Diamond Enamel Tank |
| AC Power Cable | 3×1.0mm²with 10A leakage protection plug |
| DC Power Cable | 3×1.5mm²with air switch |
| Leakage Protection | External Leakage Protector |
| Overheat Protection(AC) | Trip at 93℃(+0℃/-8℃) |
| Overheat Protection(DC) | Trip at 98℃(+0℃/-8℃) |
| Heating Element(AC) | 2000WI SUS316L |
| Heating Element(DC) | 550W/Customized |
| Inner Tank Thickness | 50L:1.5mm;Others:1.8mm |
| Dimensions -50L | Ø395×725mm |
| Dimensions -60L | Ø395×830mm |
| Dimensions -80L | Ø465×815mm |
| Dimensions -100L | Ø465×925mm |
| Insulation Material | Polyurethane Integral Foaming |
| Magnesium Rod | Ø20×250mm |
| Shell Color | White |
| Trademark Position | Negotiable |
