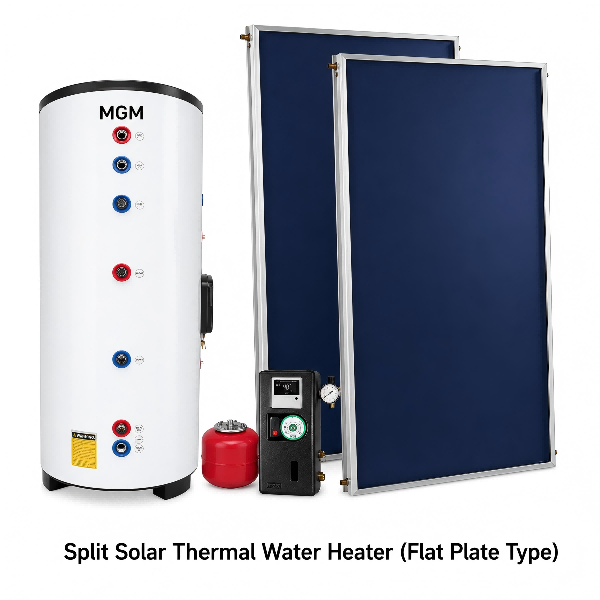

Solar Thermal Water Heater (Split Type)

Short Description:

The Solar Thermal Water Heater — Split Type is designed for villa and residential water systems. It separates the collector panels from the storage tank, allowing the tank to be placed indoors while the collectors are installed outdoors. This layout provides flexible installation, neat appearance, and convenient maintenance.

The system uses a circulation method between the collector and the tank, making it suitable for colder areas and different building layouts. It is available with 150L / 200L / 300L tank options, flat plate collector configurations, optional electric backup, circulation pump, and expansion tank.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Key Highlights

Split System Design
Collector panels and storage tank are installed separately for flexible project layout.

Indoor Tank Placement
The water tank can be placed indoors for easier maintenance and better protection.

Suitable for Villa Projects
Designed for villa water system applications and residential buildings.

Medium Circulation System
Supports circulation between collector and tank, suitable for different climate conditions.

Multiple Capacity Options
Available with 150L, 200L, and 300L tank configurations.

Flat Plate Collector Options
Collector area options include 1.87㎡, 2.34㎡, and 3.74㎡.

Main Accessories Included
Can be supplied with circulation pump, expansion tank, and optional electric backup.

Customizable Configuration
Tank size, collector quantity, pump configuration, and system structure can be adjusted according to installation needs.

System parameters
PartL	Specification	P-J-F-2-150/1.87/0.70	P-J-F-2-200/2.34/0.70	P-J-F-2-300/3.74/0.70
Stainless steelwater tank	Tank capacity	150	200	300
	Liner material		SUS304/316
	Water tank diameter	470	540	600
	Tank length	1450	1440	1760
Enamel water tank	Tank capacity	150	200	300
	Liner material	Enamel special steel plate
	Water tank diameter	520	520	650
	Tank length	1280	1580	1450
Flat plate collector	Dimensions	2000x1000x80	2000x1250x80	2000x1000x80
	Collector Quantity	1	1	2
	Film coating	Blue Film/Blaeck Film
	Collector area	1.87	2.34	3.74
Main accessories	Electric heater(optional)	220V/1.5KW	220V/1.5KW	220V/2.0KW
	Pumping station	Single pump RS15/6	Single pump RS15/6	Single pump RS15/6
	Expansion tank	8L	8L	8L
