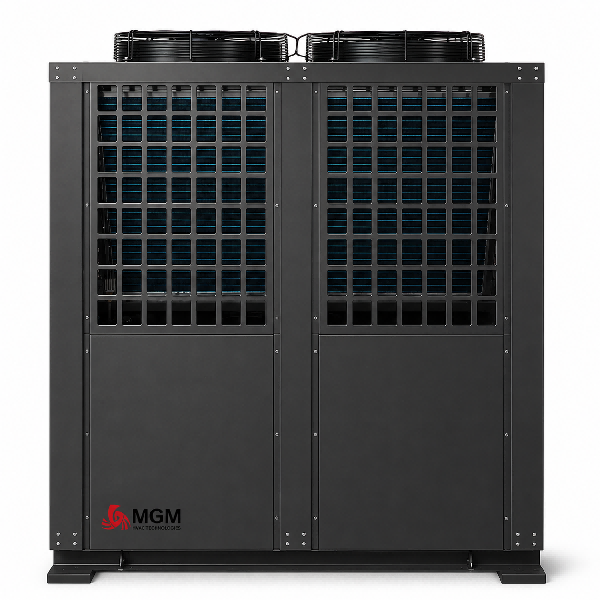

INDUSTRIAL EXTREME-HIGH TEMPERATURE HEAT PUMP

Short Description:

The Industrial Extreme-High Temperature Heat Pump is designed for demanding industrial heating applications where stable high-temperature output is required. It can support process heating and hot water applications for factories, workshops, and production facilities.

The unit adopts a reinforced industrial structure with a special compressor, enlarged heat exchanger, dedicated control system, and high-temperature refrigerant solution. The system is designed for steady operation under heavy-duty working conditions and can provide hot water up to 80°C.

This series is suitable for electroplating, printing and dyeing, chemical processing, leather treatment, washing lines, and other industrial heating applications. Multiple model options are available to match different project sizes and operating requirements.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Model	MGM-H-S-3	MGM-H-S-5	MGM-H-S-7.5	MGM-H-S-10	MGM-H-S-12	MGM-H-S-15	MGM-H-S-20	MGM-H-S-25
Working Power(KW) (15~80℃)	2.8	4.5	6.5	9	11.2	13.6	18.5	22.5
Working Power(KW) (55~80℃)	3.3	5.2	7.5	10.5	13	16	21.5	26
Heating Capacity(KW)15~80℃	9.0	14.4	20.8	28.8	35.8	43.5	59.2	72.0
Heating Capacity(KW)55~80℃	6.9	10.9	15.8	22.1	27.3	33.6	45.2	54.6
Power supply	AC380~415V3ph/50Hz(AC220V/3ph/60Hz models can be produced customized)
Max input power(KW)	3.6	5.7	8.3	11.6	14.3	17.6	23.7	28.6
Max working current(A)	5.6	8.9	12.8	17.9	22.1	27.2	36.6	44.3
Compressor quantity	1set	1set	lset	2sets	2sets	2sets	2/4sets	2/4sets
Max.water temperature	80℃
Refrigerant	(Special design mixed refrigerant for high temperature application)
Condenser	High efficiency copper coil tubes in can type condenser
Evaporator	aluminum fins+copper pipes evaporator
Fan motor	250W*1	90W*2		250W*2		550W*2	600*2	630*2
Connection size	DN25			DN40			DN50
Fan air flow direction	Front side			Top side
Water circulation flow rate(M³/H)	4	7	10	14	17	20	28	34
Ext.dimension (L/W/H)/mm	920	1155	1300	1500	1500	1850	2000	2305
	420	430	505	690	800	1000	1100	1100
	1400	1250	1350	1100	1515	1940	1920	1860
*Heating capacity data is tested under working condition:Ambient dry-bulb temperature 20℃/wet bulb temperature 15℃
