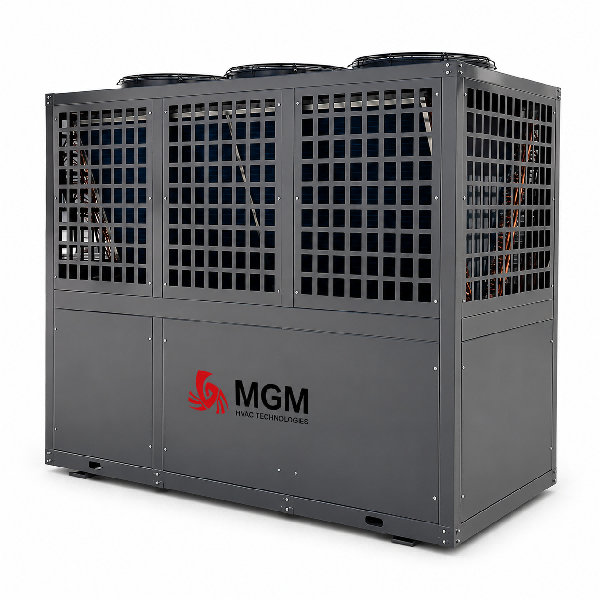

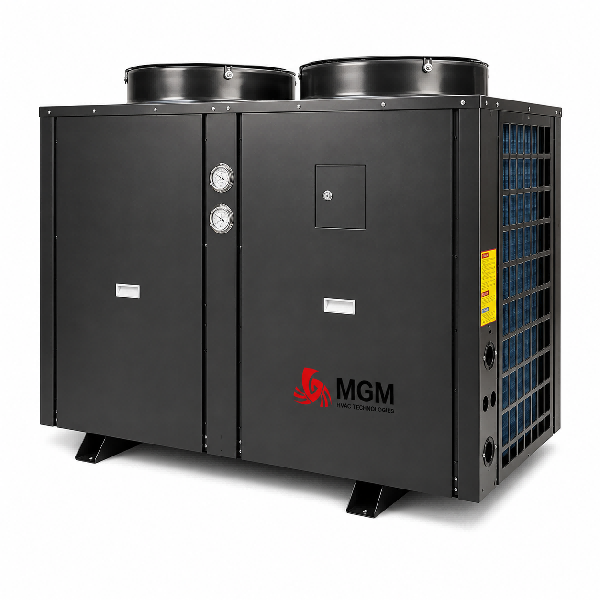

MGM-GS SERIES COMMERCIAL AIR SOURCE HEAT PUMP

Short Description:

The MGM-GS Series Commercial Air Source Heat Pump is designed for medium and large hot water applications in commercial and light industrial projects. It can work with a storage tank to provide a steady hot water solution for hotels, schools, apartments, factories, workshops, and other project sites.

This series uses air heat exchange technology to collect heat from the surrounding air and transfer it to water through a heat exchange system. The unit features a strong cabinet structure, enlarged heat exchanger design, smart control system, and multiple model options to meet different project requirements.

With stable operation, flexible configuration, and a wide capacity range, the MGM-GS Series is suitable for centralized hot water systems, commercial buildings, production support, and customized project applications.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Models and technical specifications
Model	MGM-G5-3	MGM-GS-5	MGM- G5-6.5	MGM- G⁵-7.5	MGM- G5-10	MGM- G5-12	MGM- G5-15	MGM- G5-20	MGM- G5-25	MGM- G5-30
Input Power	283	4.58	5.3	6.5	92	112	13.6	18.5	22.2	26
Nominal Heating CapaityiKM*	11.5	18.5	215	26	37	45	55	75	90	105
Power supply	ACZ20/1ph AC80V3ph	AC380-415V 3ph/50Hz (AC220/3ph/60Hz modes can beproducedcustomized)
Nominalworking currentj4)	220V:128 380V4.4	7.1	8.5	10.1	14.2	17.0	20.9	28.6	34.1	40.2
Max input power(k8M)	3.5	5.75	6.875	8.125	115	13.75	16.875	23.125	27.5	32.5
Maxwor king GurrentjA)	220:16 380W5.4	89	10.6	126	17.8	21.3	26.1	35.8	42.6	50.3
Rzated/Mawater temperature	55C/50^℃
Com presor quartity	1set	1set	lset	1set	2sets	2sets	2sets	214sets	214sets	2/4sets
Condenser	Higheficiencycopper coiltubes incan typecondenser
Evaporator	aluminum fins+copper pipesewaporator flarger area design)
Evaporatorshape	U shape				LShape		V Shape
Fanmctar powe’quantity	90W	250W			250W*2		550W*2	600*2	630*2	600*3
Refrigerant	R410a/R3Z/R417
NoisekdB)	55	60	65	65	70	70	70	70	70	70
Comectionsize	DN25				DN40			DN50		DN65
Water ciroulatian flow ratel(M³/H)	2.5	4.5	5.0	6.0	8.5	10	13	17	21	25
Btdimension (4M/HVmm	695	760	760	760	1500	1500	1500	1850	2000	2305
	655	690	690	690	690	690	800	1000	1100	1100
	850	1100	1100	1100	1100	1100	1515	1940	1920	1860
NeLWeighulkg)	80	120	130	135	280	300	360	560	600	680
“Heating capacity data is tested under working conditlom:Ambilent dry bulb temperature 20C/wet bulb temperature 15C,water temperature heating from 15-55℃ .
