MGM-S SERIES AIR SOURCE HEAT PUMP WATER HEATER OUTDOOR UNIT

Short Description:

The MGM-S Series Air Source Heat Pump Outdoor Unit is designed for split hot water systems. It can work together with a storage tank to provide a stable hot water solution for homes, villas, apartments, and project applications.

This series uses an air heat exchange method to collect heat from the surrounding air and deliver it to the storage tank. The unit is available with a classic white casing or a stainless-steel casing, offering different choices for various installation environments.

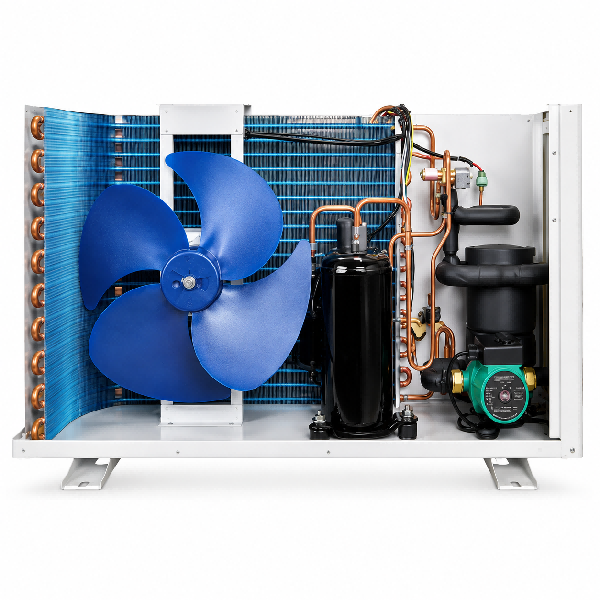

The unit integrates a heat exchanger, fan, compressor, circulation components, and smart control module. It features stable operation, compact structure, and convenient maintenance. Different capacity options are available according to project needs.

It is suitable for residential hot water systems, villa hot water projects, hotel room hot water supply, and small hot water projects.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Models and technical specifications
Model Number	MGM-S-1.0	MGM-S-1.5	MGM-S-2.0	MGM-S-2.5
Input Power(KW)	0.86	1.18	1.68	21
Nominal heating capacitylH)*	3.57	4.90	6.97	8.72
Power supply	AC220V-240V/50Hz (60Hz model can be produced oustomized)
Woring curent(A)	3.9	5.4	7.6	9.5
Max input power(KW)	1.08	1.48	2.10	2.63
Max working curent(A)	4.9	6.7	9.5	11.9
Water circoulation pump	Intemal/93W shielded silent pump			Bstermal 135Wshielded silent pump
Rated/Max water tem	55°C/60℃
Depressurizedevice	Electrionic Expansion Valbve(EEV)
Condenser (Heatexchanger)	Intemal High efficiency tube-in-shellexchanger (Al-Doper water flowingpipe)
Ewaporator	aluminumfins+copper pipes evaporatorf(larger area design)
Controller	Smart control system with wifi network connection
Fan motor power	35W	30W	30W	40W
Refrigerant	R410a/R32/R417
Nolse	55dB
Operation temp.range	-3~45℃
Ext.Dimension [/WHmml	760^260“450	935295545	935295545	1000300620
NetWeightflkg)	33	44	53	58
"Heating capacity data is tested under working conditon:Ambient dry-bulb temperature 20°C/wet bulb temperature 15℃,water temperature heating from 15-55℃ .
