MGM-S-DWH/MGM-F-DWH SERIES SPLIT HEAT PUMP WATER HEATER

Short Description:

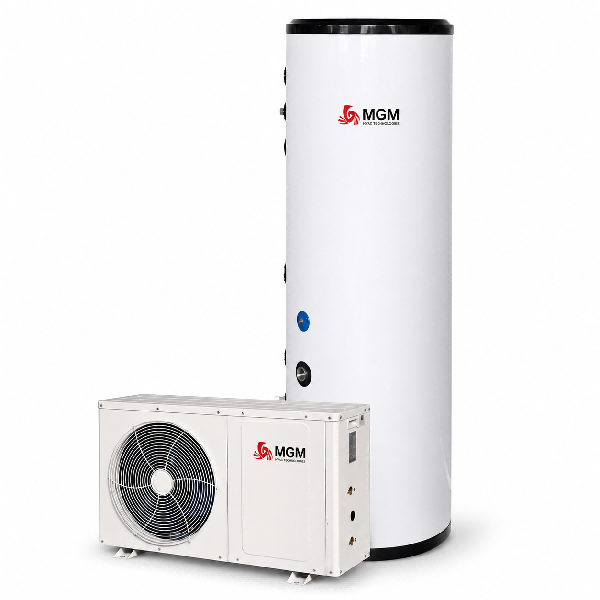

The MGM-S-DWH / MGM-F-DWH Series Split Heat Pump Water Heater is a split-type air source hot water solution designed for homes, apartments, villas, hotels, and commercial domestic hot water projects. The system consists of a heat pump outdoor unit and a hot water storage tank, offering flexible installation according to different project layouts and site conditions.

This series includes two system options:

MGM-S-DWH Water Pump Circulation Type
This system uses a water pump to circulate water between the storage tank and the heat pump outdoor unit for heating. It features a simple structure, convenient maintenance, and flexible installation.

MGM-F-DWH Refrigerant Circulation Type
This system uses refrigerant circulation for heat transfer, with a condenser coil installed inside the water tank. It offers efficient heat exchange and is suitable for projects requiring higher system efficiency and a more compact installation layout.

The product range covers 150L / 200L / 250L / 300L / 400L / 500L tank capacities to meet different hot water demands. The inner tank is made of SUS304B food-grade stainless steel, and the outer casing is available in classic white painted steel or full stainless steel versions. The system supports AC220V–240V / 50Hz, with 60Hz customization available, and the rated / maximum water temperature can reach 55°C / 60°C.

With flexible installation, a wide capacity range, stable operation, and multiple configuration options, this series is suitable for residential hot water systems, villa projects, hotel rooms, small commercial applications, and OEM branding.

FOB Price: US$99-9999/unit.

Min.Order Quantity: 2 units per order.

Supply Ability: 2,000 units per month.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Features:
*Economical and high-efficiency: Save average 70% heating cost than electric heaters.
*Water Circulation: Easy installation and acquaintance
*Quiet Running: High-efficiency, low noise rotary compressor, low noise fan, the main unit works at extremely quiet condition.
*Intelligent: Full automatic and intelligent controller, no need any manual operation.

KS-DHW(Water pump circulation)heat pump water heater specification
Part	Model	KS-1.0-150	KS-1.5-200	KS-1.5-250	KS-1.5-300	KS-2.0-400	KS-2.0-500
Water Tank	Tank capacity	150 liters	200 liters	250 liters	300 liters	400 liters	500 liters
	Ext.dimension(mm)	φ470*1500	φ520*1560	φ560*1580	φ560*1860	φ700*1580	φ700*1860
	Inner tank material	SUS3042B food grade stainless steel
	Inner tank wall thickness (mm)	1.2	1.5	1.5	1.5	1.8	1.8
	Outer material	White color painted steel /SUS304 stainless steel/wall thickness=0.5mm
	Insulation	High density non-CFC plyurethane ≥0.04g/cm3
Heat pump outdoor unit	Heat pump model	KS-1.0	KS-1.5	KS-1.5	KS-1.5	KS-2	KS-2
	Input Power(KW)	0.86	1.18	1.18	1.18	1.68	1.68
	Nominal heat capacity(KW)*	3.57	4.90	4.90	4.90	6.97	6.97
	Power supply	AC220V~240V/50Hz (60Hz model can be produced customized)
	Rated/Max water temperature	55℃/60℃

KF-DHW(Referigerant circulation)heat pump water heater specification
Part	Model	KF-1.0-150	KF-1.5-200	KF-1.5-250	KF-1.5-300	KF-2.0-400	KF-2.0-500
Water Tank	Tank capacity	150 liters	200 liters	250 liters	300 liters	400 liters	500 liters
	Ext.dimension(mm)	φ470*1500	φ520*1560	φ560*1580	φ560*1860	φ700*1580	φ700*1860
	Inner tank material	SUS3042B food grade stainless steel
	Inner tank wall	1.2	1.5	1.5	1.5	1.8	1.8
	tbuctkeressaterim)	White color painted steel /SUS304 stainless steel/wall thickness=0.5mm
	Insulation	High density non-CFC plyurethane ≥0.04g/cm3
	Condenser Coil	316L stainless steel coil/φ9.52mm /smooth surface
	Coil ext.dia	φ9.52mm	φ9.52mm	φ9.52mm	φ9.52mm	φ9.52mm	φ9.52mm
	Coil lenght /surface area	20 meters 0.75M²	30 meters 0.9M²	30 meters 0.9M²	30 meters 0.9M²	40 meters 1.2M²	40 meters 1.2M²
Heat pump outdoor unit	Heat pump model	KF-1.0	KF-1.5	KF-1.5	KF-1.5	KF-2	KF-2
	Input Power(KW)	0.86	1.15	1.15	1.15	1.68	1.68
	Nominal heat capacity (KW)*	3.57	4.72	4.72	4.72	6.89	6.89
	Power supply	AC220V~240V/50Hz (60Hz model can be produced customized)
	Rated/Max water temperature	55℃/60℃
