MGM-F SERIES AIR SOURCE HEAT PUMP WATER HEATER OUTDOOR UNIT

Short Description:

The MGM-F Series Air Source Heat Pump Outdoor Unit is designed for split-type hot water systems. It works with a storage tank to provide reliable hot water for residential and light commercial applications.

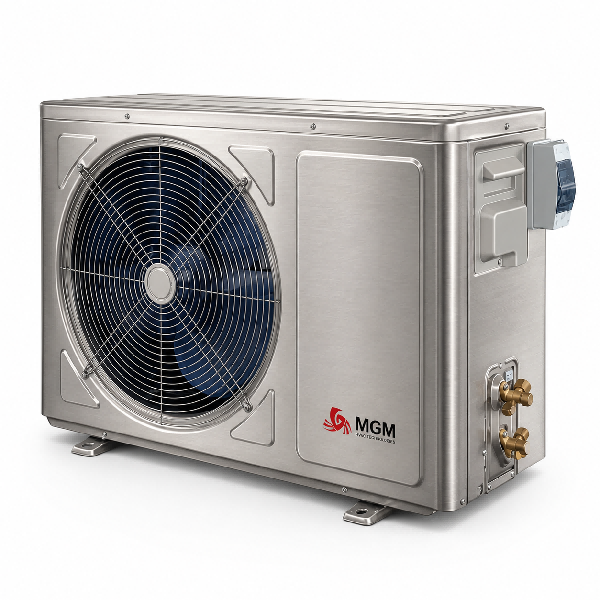

The unit absorbs heat from outdoor air and delivers it to the water tank through a heat exchange process. It is available in classic white casing and stainless-steel casing, offering flexible choices for different installation environments.

The series includes several capacity options, from small residential use to larger project applications. With a compact structure, smart control design, and stable heating performance, it is suitable for homes, villas, apartments, hotels, and customized hot water projects.

Note: For detailed product specifications and quotations, please contact us.

Send email to us

Product Detail

Product Tags

Models and technical specifications
Model Number	MGM-F-1.0	MGM-F-1.5	MGM-F-2.0	MGM-F-2.5	MGM-F-3
Input Power(KM)	0.86	1.15	168	21	2.8
Nominal heat capacitylH)"	3.53	4.72	6.89	8.61	11.48
Power supply	AC220V-240V/50Hz (60Hz model can be produced oustomized)
Working cument(A)	3.9	5.2	7.6	9.5	127
Max input power(KW)	1.08	1.44	2.10	2.63	3.50
Max CuIrentA)	4.89	6.53	9.55	11.93	15.91
Fan motor power(M)	35	30	30	40	90
Rated/Max water temperature	55°C/60℃
Depressurizedevice	Electronic Expansion Valve(EE)
Condenser	External condenser (not indluded inside the machine)
Ewaporator	aluminumfins+copper pipes evaporatorf(larger area design)
Controller	Smart control system with wifi network connection
Refrigerant outlet/inlet size	9.52/6.35mm	9.526.35mm	9.52/6.35mm	12.7/6.35mm	15.88/9.52mm
Refrigerant pipe	3 meterscopper pipes group with insulation protection
Refrigerant	R410a/R32/R417
Nolse	55dB				60 dB
Operation temp.range	-3~45℃
Ext.Dimension (L/WHmml	780260*540	780*260"540	780260540	840285610	880360800
Net.Weight	31kg	33kg	40kg	5zkg	65kg
"Heatingcapacity data istested under working condition:Ambient dry-bulb temperature 20°Clwet bulb temperature15℃,water temperature heating from 15-55℃ .
