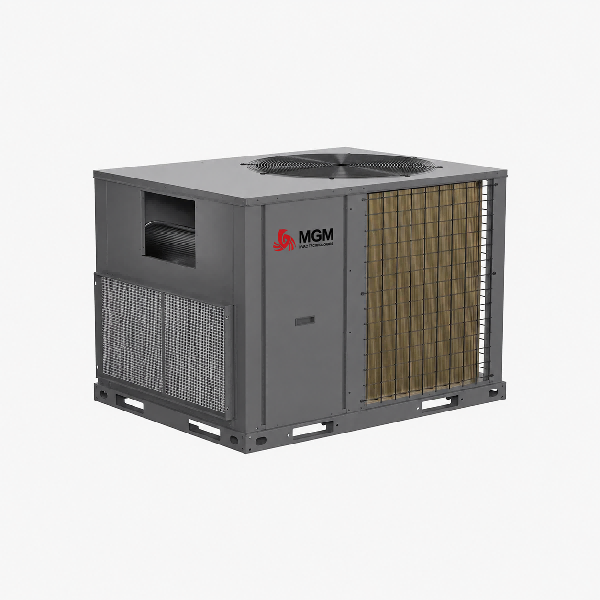

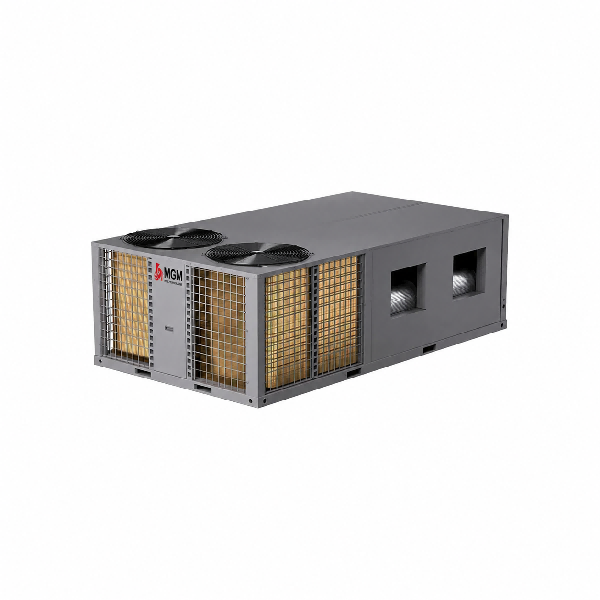

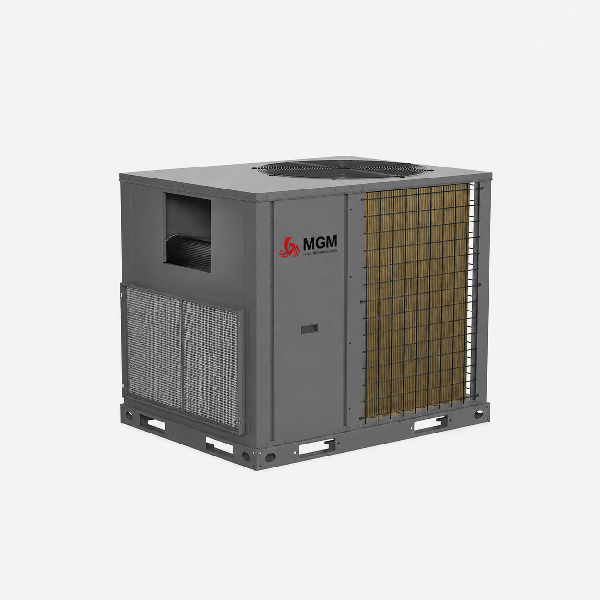

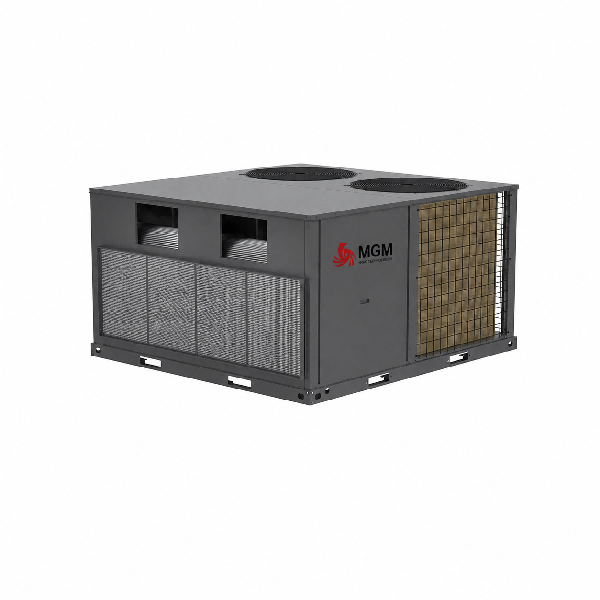

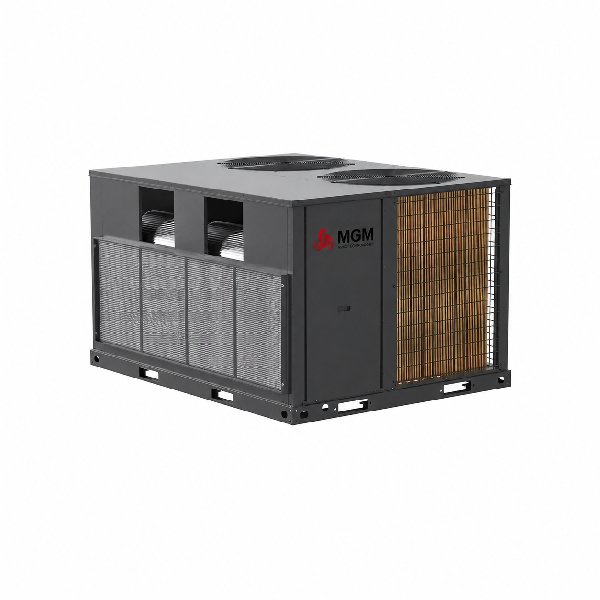

Rooftop Package Unit 380V / 3Ph / 50Hz / 60Hz 6.2–45 Ton
Key Features
Capacity Range from 6.2 Ton to 45 Ton
Provides multiple capacity options for medium and large commercial air conditioning projects.
Cooling-Only and Heat Pump Options
Available in cooling-only and heat pump configurations, offering flexible selection for different climates and application needs.
380V / 3Ph / 50Hz / 60Hz Power Supply
Designed for commercial power systems, suitable for different regional electrical requirements.
High-Efficiency DC Inverter Compressor
Uses permanent magnet motor technology to improve operating efficiency and performance. Rotor positioning control supports smooth low-torque startup and stable operation.
High-Efficiency Condenser Coil
Staggered inner-groove tubes and corrugated aluminum fins improve heat transfer efficiency by 25–30%. The coil is factory-tested to 650 psig for reliable performance.
System Protection Control
High-pressure and low-pressure protection functions help safeguard the compressor and support stable system operation under different working conditions.
Automatic Refrigerant Flow Adjustment
The electronic expansion valve automatically adjusts refrigerant flow according to system demand, helping maintain efficient operation and extend service life.
Compact Rooftop Package Design
The integrated rooftop structure helps save installation space, simplify project layout, and reduce the need for additional equipment rooms.
